Description
Product information
TYPE A RCBO
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit.
They are suitable also for installation in Wylex Consumer and in two or four module enclosures.
This 10A residual current breaker with overcurrent (RCBO) combines the functions of overcurrent protectors and leakage detectors to help prevent you from getting electric shocks. It has a single pole and it's and a short circuit level of 6kA

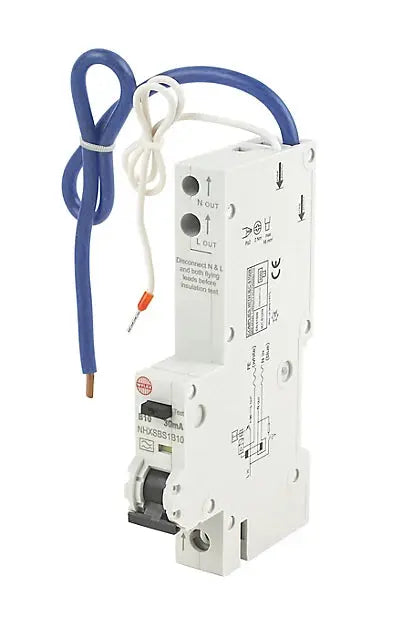

Single pole, 10A type B curved 230V 30mA RCBO.
- DIN Rail Mounted Fitting
- Clamp Terminal Allows Fitting of Comb Type Busbar
| SPECIFICATION | |
|---|---|
| Brand | Wylex |
| Breaking Capacity (Inc) | 6 kA |
| CSU Device | RCBOs |
| Curve Type | Type A |
| Earth Leakage Sensitivity (IDn) | 30 mA |
| Incomer Fitting Type | DIN Rail Mounted |
| Model No | NHXSBS1B10 |
| No. of Phases | Single-Phase |
| Number of Poles | Single Pole |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Product Type | RCBO |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Operational Current (In) | 10 A |
| Rated Operational Voltage (Ue) | 230 V |
| RCD Type | Type A |
| Suitable Cable Size | 0.75 - 25 mm² |
