Panels

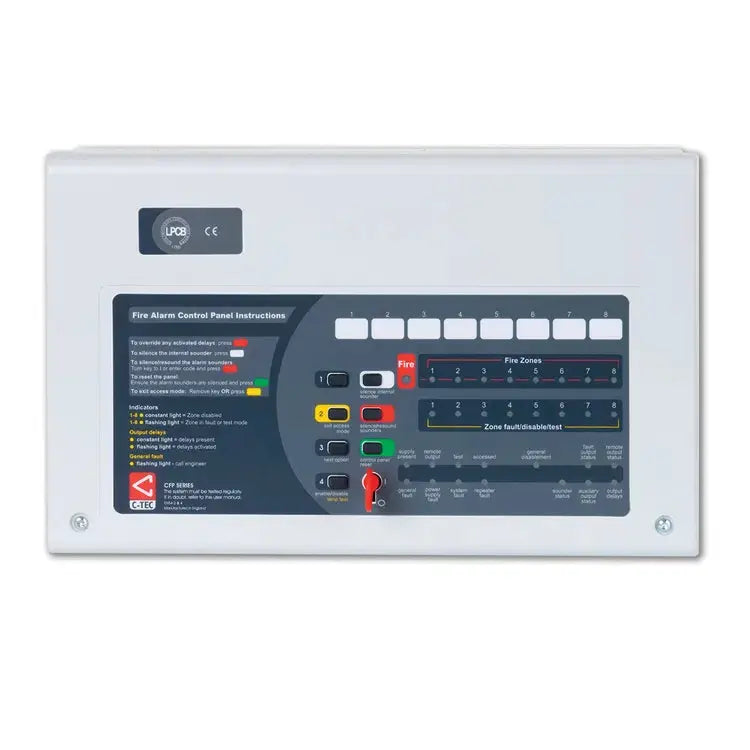

C-TEC  2, 4 & 8 Zone fire alarm panels

Part no: CFP702-4, CFP704-4 & CFP708E-4

2 & 4 Zone Standard Panel

• Certified to EN54 parts 2, 4 and 13, C-TEC’s CFP 2 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price.
• Supplied in an attractive flush or surface mountable plastic enclosure, it includes two detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry.
• A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.

8 Zone Economy Panel

• LPCB certified to EN54-2/4, C-TEC's CFP economy fire alarm panels offer an array of user and installer-friendly features.
• Supplied in an attractive flush or surface mountable plastic enclosure, they include detector zones, four conventional sounder circuits, class change and alert inputs, four open collector outputs (fire, fault, reset and remote) and combined keypad/keyswitch entry.
• Unlike the Standard CFP fire alarm panels, the economy panels are NOT compatible with CFP repeaters, relay expansion boards or EN54-13 interface cards. It also has limited engineering functions.

Alarms

C-TEC Activ Optical Smoke Detector C4416 for Fire Alarm Panel

Part no: C4416

• A high-quality optical smoke detector offering outstanding detection performance at a very competitive price.
• Manufactured by C-TEC in the UK.
• Third-party certified to EN54-7 by Intertek.
• Wide 6-33V DC operating voltage.
• Two 8mm x 2mm ultra-bright red LED indicating strips offering 360º visibility.
• Drift compensation functionality ensures detector sensitivity is automatically calibrated to suit prevailing conditions and/or increased contamination levels.
• Compatible with our ActiV C4408D diode, C4408 non-diode and C4408R relay bases.

C-TEC ActiV Rate of Rise Heat Detector C4403A1R for Fire Alarm Panel

Part no: C4403A1R

• A high-quality Type A1R static/rate of rise heat detector offering outstanding detection performance at a very competitive price.
• Manufactured by C-TEC in the UK.
• Third-party certified to EN54-5 by Intertek.
• Wide 6-33V DC operating voltage.
• Two 8mm x 2mm ultra-bright red LED indicating strips offering 360º visibility.
• Compatible with our ActiV C4408D diode, C4408 non-diode and C4408R relay bases.

C-TEC ActiV Diode Base C4408/C4408D Diode for Fire Alarm Panel

Part no: C4408/C4408D

• Compatible with C-TEC’s entire range of ActiV fire detectors.
• Third-party certified to the relevant parts of EN54 in conjunction with our ActiV detectors.
• Easy to fit with lots of working space.
• Can be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all ActiV detectors.
• Integrated detector/base locking mechanism, head removal tool and ID tag.
• Simple ‘click and twist’ design.
• Remote LED terminals for the optional connection to a BF318 Remote indicator.
• C4408 non-diode and C4408R relay bases also available.
