Description

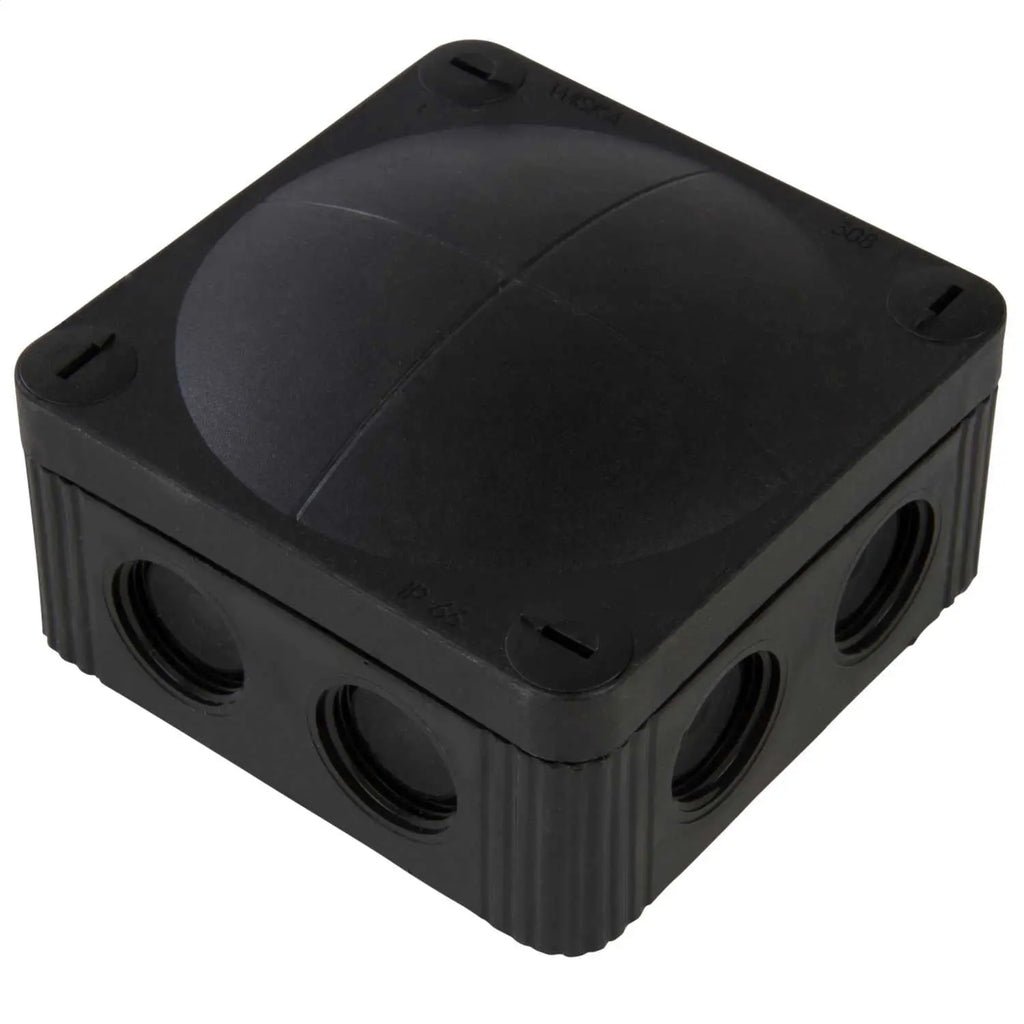

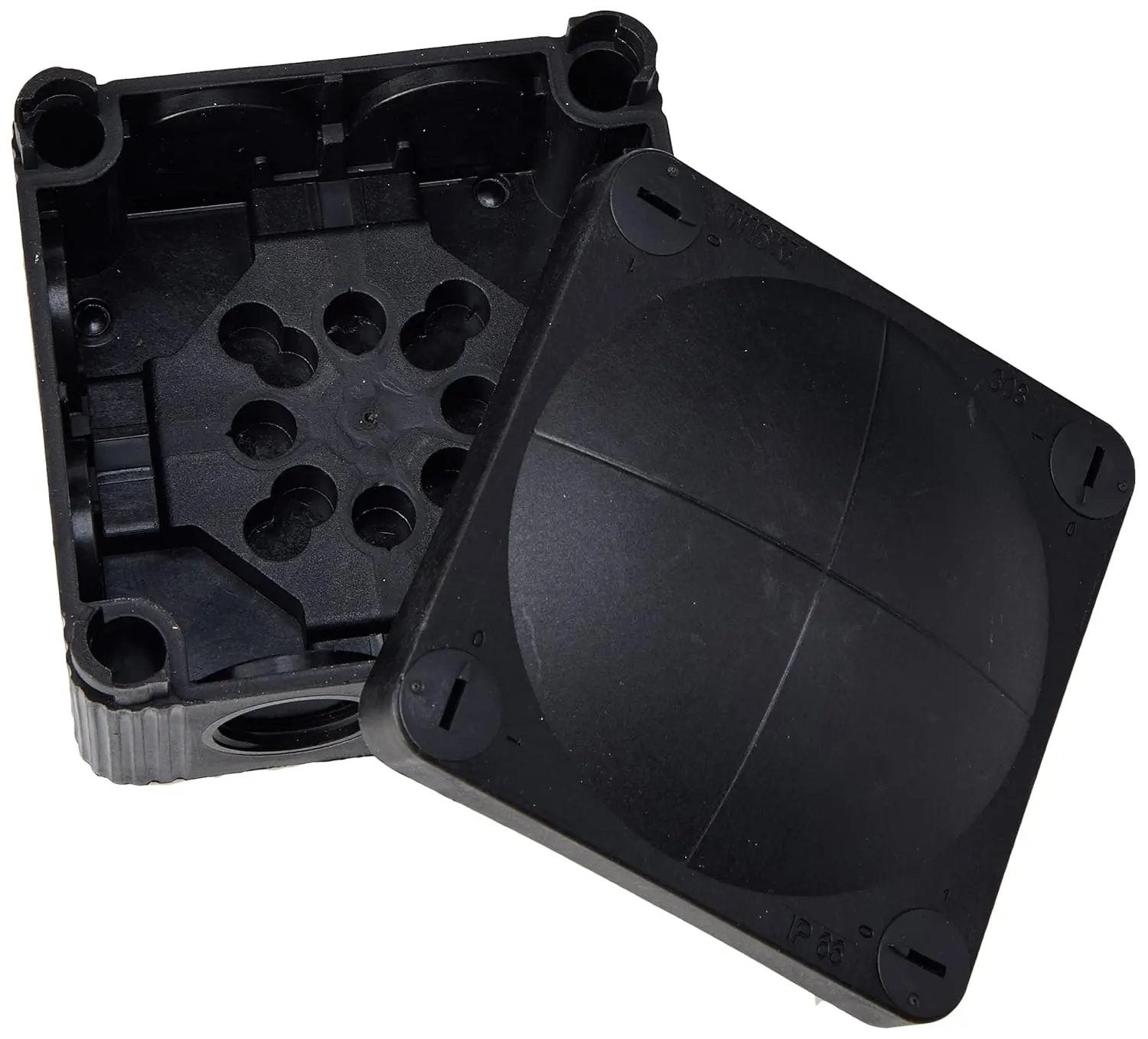

Wiska COMBI 308 black junction box (85×85×51mm) is IP66 as standard and can achieve IP67 when used with threaded entries and cable glands, making it ideal for outdoor lighting, CCTV and general wiring.
Wiska COMBI 308 — features, size and use cases
Made from halogen-free polypropylene, the COMBI 308 is UV/ozone resistant with a 750 °C glow-wire rating (-30 °C to +100 °C). Quarter-turn captive screws and a bellied lid give extra working space for faster terminations.
Key Features
• IP66 out of the box; up to IP67 with threaded entry + M20×1.5 glands
• 85×85×51 mm 308 footprint
• Polypropylene housing, halogen-free; UV/ozone resistant
• Captive quick-release screws; bellied cover for extra space
• Rated 400 V; temperature range -30 °C to +100 °C; glow-wire 750 °C
• Colour: Black (BK, RAL 9005)
• Compatible with mounting clip
Choosing between 308 and 308/5? Both share the same housing; 308/5 includes a 5-way terminal block for faster wiring.
Introduction to Wiska 308 Junction Box
The Wiska 308 Junction Box is a reliable solution for electrical connections, especially because it offers an IP66/67 rating. This means that it is dust-tight and can withstand powerful water jets, so it is perfect for both indoor and outdoor use. With dimensions of 85 x 85 x 51mm, this junction box is designed to accommodate various electrical installations comfortably. The black LS0H material not only enhances durability but also ensures fire safety, making it a vital component for any electrical setup.
Adaptability and Ease of Use
One of the key features of the Wiska 308 Junction Box is its adaptability. This junction box can handle a maximum current of 32 Amps, which makes it suitable for diverse applications. Users will appreciate how easy it is to install; therefore, it can be used in residential, commercial, and industrial settings. With its thoughtfully designed layout, you can effectively manage wiring without facing any hassles, so you save both time and effort during installation.
Importance of Choosing the Right Junction Box
Choosing the right junction box, like the Wiska 308, is crucial for ensuring the safety and efficiency of electrical systems. An appropriate junction box protects connections from environmental hazards, so they remain secure and functional. Because of its superior design and robust materials, the Wiska 308 minimizes the risk of electrical faults and enhances the overall longevity of your installations. This makes it not just a good choice, but an essential one for anyone serious about safety in electrical work.
