Description
E V O L V E I A new generation of decorative modern wiring devices, available in the latest colours and finishes.

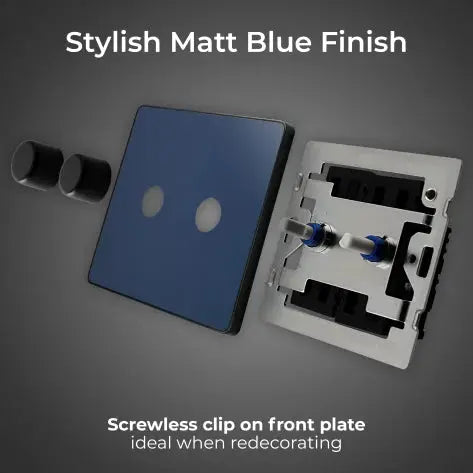

These modern and stylish switches and sockets are the latest addition to the BG Decorative Wiring Accessory portfolio. Designed with a slim, screwless profile, this comprehensive range offers a complete solution for any domestic or commercial application.
Dimmer modules can only handle 10 bulbs per dimmer module (100 LED Watts Max).
Dimmer Switch – Intelligent Trailing Edge
Intelligent trailing edge dimmer suitable for LED, halogen, CFL and incandescent lamps
Soft start, smooth dimming control and silent operation
2 Way push on/off with rotary control
Overload protection will turn the lights down or off until the load is corrected

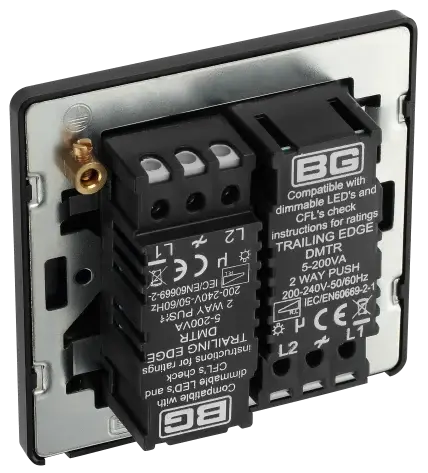

Clearly marked terminals with backed out captive screws for easy installation
Terminal capacity 3 x 1mm², 2 x 1.5mm² & 1 x 2.5mm²
Manufactured to BS EN 60669-2-1

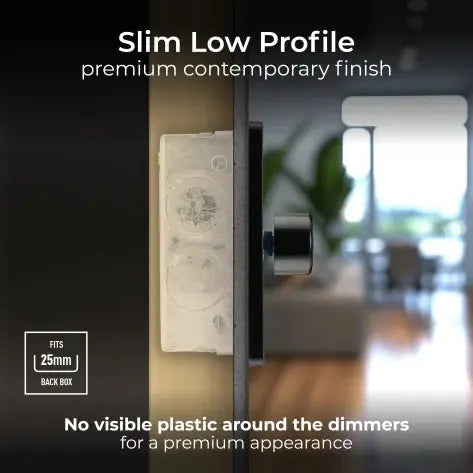

Minimum mounting box depth – 25mm
Load Rating (Max/Min per module)
Dimmable LED 5-100W
Tungsten/Incandescent 5-200W
Halogen 20-200W
Dimmable Compact Fluorescent (CFL) 5-100W
