Description
Flexible cable with Foil screen, used for the wiring of Security Alarm Systems, Access Control or other low voltage applications. Will comfortably exceed the performance requirements of BS4737 type 3 and is fully CPR compliant.
-

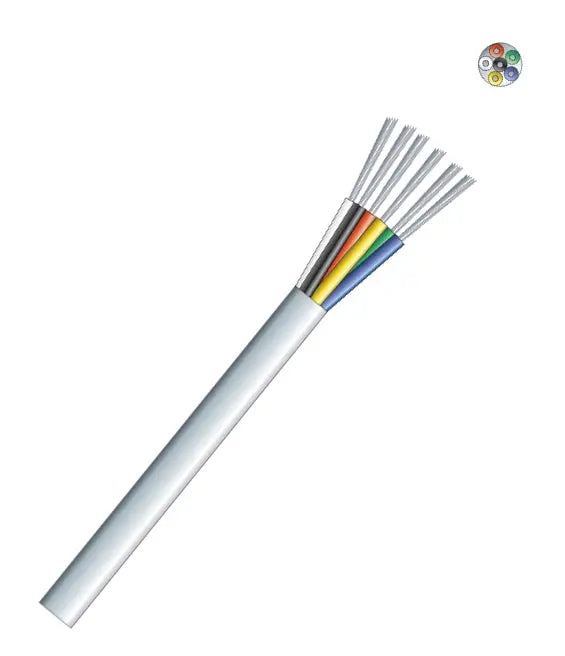

6 Core Intruder Alarm Cable
-
7 x 0.2 mm strands, TCCA
-
Tinned Copper Coated Aluminium & Magnesium cores with high Copper content.
-
Insulation, PVC 0.3 mm
-
Nylon stripping cord
-
Aluminium Foil screen with earth wire
-
Outer Sleeve, PVC in white
-
Current rating: 1 amp
-
CE, RoHS & CPR compliant
-
Core colours: Red, Blue, Yellow, Black, Green & White
-

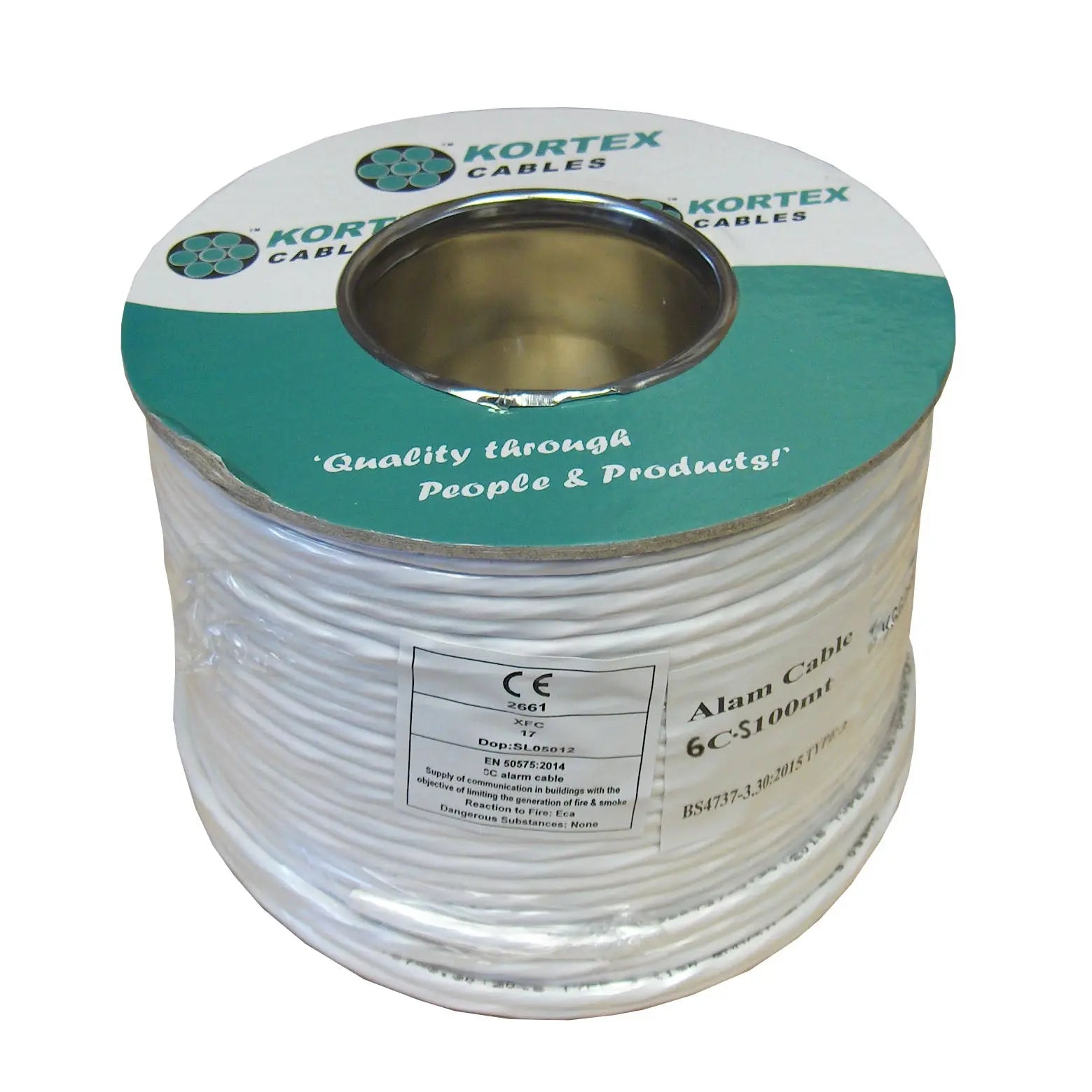

100m Reel: Cardboard with metal inner
Application:
Flexible cable used for the wiring of security systems, access
control, burglar alarms and other low voltage applications.
Construction overview:
4,6,8 or 12 core construction with each conductor made up of
7 strands of 0.20 mm Tinned Copper or Copper Clad aluminium
( CCA) with PVC insulation & PVC outer Jacket (optional LSZH) in
White or Dark Brown. Excellent flexibility yet robust with a strong
nylon stripping cord.
